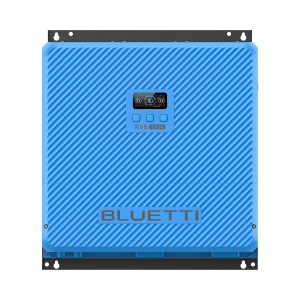

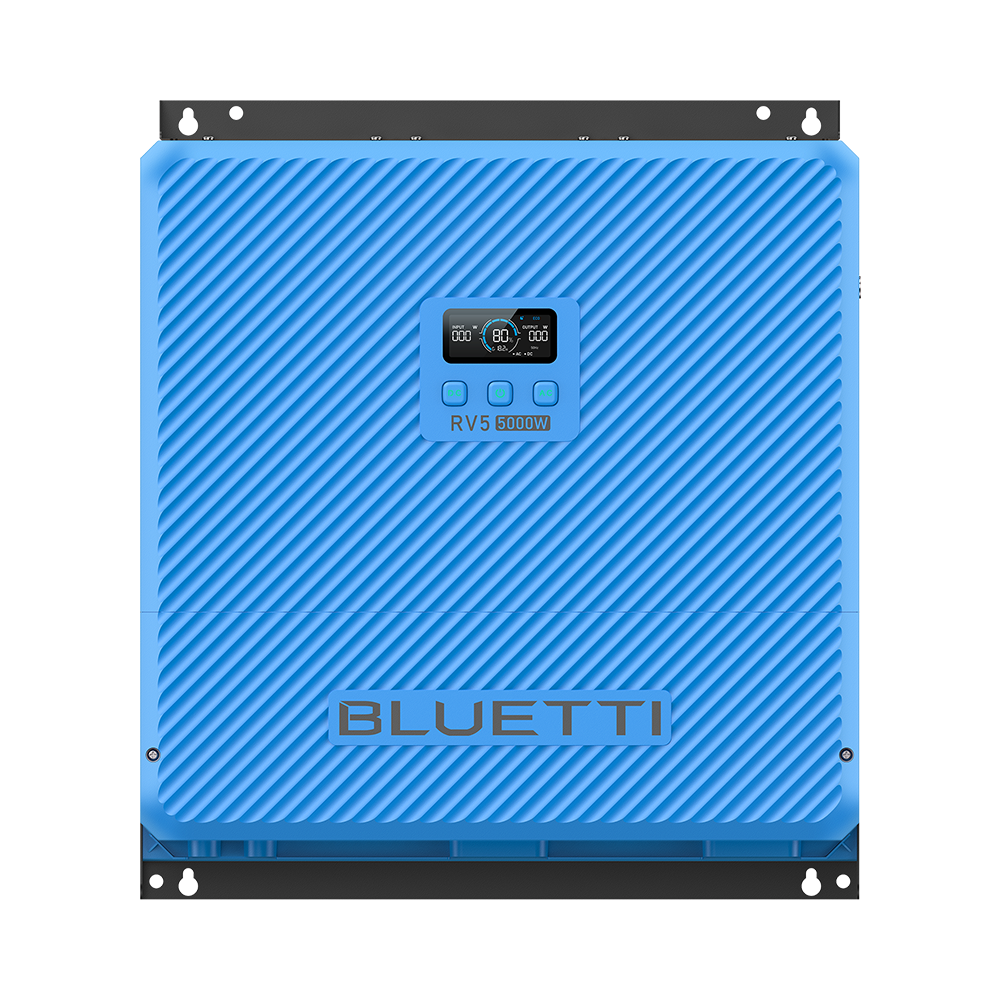

BLUETTI RV5 — Smarter Energy for Life on the Road

Smarter Energy for Life
on the Road & Off the Grid

Get A Quote

All the Power, Half the Hassle

All the Power, Half the Hassle

All-in-One Integrated Power System

Simplify complex RV energy systems into one intelligent solution. With up to 5,000W output power, the integrated system combines inverter, MPPT solar controller, DC output, alternator charging, and circuit protection into one streamlined platform.

All-in-One Integrated Power System

Higher Efficiency, Longer Runtime.

The world's first 48V high-voltage all-in-one energy system for RV, off-grid, and marine living—delivering higher efficiency, scalable expansion, and broad system compatibility.

Fast Charging, Anywhere Adventure Takes You.

Supports shore power, solar, alternator, and generator charging with up to 5,000W AC input and 3,600W solar input—keeping your RV powered on the road, off the grid, or at the campsite.

Premium B4810 Battery Pack

Engineered for reliable performance in demanding off-grid environments. Features low-temperature heating, IP65 protection, and up to 6,000 life cycles for long-term energy reliability.

Premium B4810 Battery Pack

Smart Home Tech for the Open Road.

Manage your entire electrical system from one intuitive HD touchscreen. The Epad gives you a complete overview of your power consumption, battery status, and charging inputs in real-time. With the BLUETTI app, this power is also in your pocket, wherever you are.

Smart Home Tech for the Open Road

Tech Specs

RV5 Power Hub tech specs diagram

AC Input

  • Rated Input Voltage
    Standard AC Input (N/L1/G) - 120 V EV Input (L1/L2/G) - 208V
  • UPS
    Switchover time ≤20ms
  • Charging Power
    5,000W Max. (limited by the battery terminal's maximum current)

AC Output

  • Rated Output Voltage
    120V
  • Rated Output Current
    42A
  • Rated Output Power
    5,000W

Solar Charging(PV1/PV2)

  • Max. Input Power
    1,800W
  • Input Voltage
    12V to 50V
  • Max. Input Current
    50A

Vehicle Charging(PV2)

  • Max. Input Power
    600W (12V) / 1,200W (24V)
  • Input Voltage
    12V to 14.4V (12V battery) 24V to 28.8V (24V battery)
  • Max. Input Current
    50A

DC Output

  • Rated Output Voltage
    12V/24V
  • Rated Output Current
    100A (12V) 60A (24V)
  • Rated Output Power
    1,360W (12V) 1,620W (24V)
  • Total Load Power
    6,000W Max. (varies based on battery type and quantity)
  • AC+DC Input Power
    6,000W Max.

GENERAL

  • Weight Approx.
    30.86lbs (14kg)
  • Dimensions
    17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm)
  • Operating Temperature
    -4°F to 131°F (-20°C to 55°C)
  • Storage Temperature
    -4°F to 104°F (-20°C to 70°C)
  • Operating Humidity
    95% Max.
  • Certification
    UL458
  • Warranty
    5Y

BATTERY INFO

  • Model
    B4810
  • Battery Capacity
    5,120Wh (51.2V, 100Ah)
  • Battery Type
    LiFePO₄ (Lithium Iron Phosphate)
  • Cycle Life
    6,000 cycles @ 70% capacity

Charging & Discharging

  • Charge Current
    50A (Recommended) 100 A Max.
  • Discharge Current
    100A Max.
  • Peak Discharge Current
    200A @ 30 s
  • Cell Temperature Protection
    Charging: <-1°C or >61°C (<30°F or >142°F), Discharging: <-21°C or >61°C (<-5.8°F or >142°F),

GENERAL

  • Weight
    Approx. 101.4lbs (46kg)
  • IP Rating
    IP65
  • Operating Temperature
    Charging: -20°C to 55°C (-4°F to 131°F) Discharging: -20°C to 55°C (-4°F to 131°F)
  • Storage Temperature
    Up to 1 month: -20°C to 40°C (-4°F to 104°F) Up to 6 months: -20°C to 25°C (-4°F to 77°F)
  • Dimensions (L × W × H)
    23.94 × 14.96 × 5.71in (608 × 380 × 145mm)
  • Max. Expansion (Parallel & Series)
    122.88kWh (24P) 51.2V, 2,400Ah
  • Certifications
    MSDS, UN38.3, FCC, CE, RoHS, UL
  • Warranty
    5 Years

IN THE BOX

RV5 Power Hub
x 1
RV5 Power Hub
M8 Wood Screw
x 8
M8 Wood Screw
Anchor
x 8
Anchor
Drilling Template
x 1
Drilling Template
User Manual
x 1
User Manual
B4810 LiFePO₄ Battery
x 2
B4810 LiFePO₄ Battery
Epanel
x 1
Epanel
Epad
x 1
Epad
Free Battery Connection Wiring Pack($99)
x 1
Battery Connection Wiring Pack
Free Alternator Charger Wiring Pack($179)
x 1
Alternator Charger Wiring Pack
Free Distribution Panel Wiring Pack($149)
x 1
Distribution Panel Wiring Pack
Free Short Battery Connection Cable($49)
x 1
Short Battery Connection Cable

FAQs

Download Brochure (PDF)

RV5 Quick Start Guide
RV5 Quick Start Guide

RV5
